Zetex Semiconductors (Diodes Inc.)

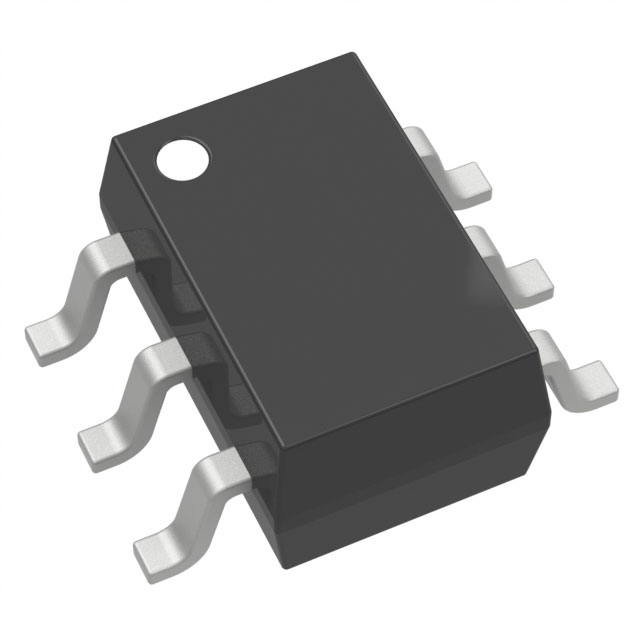

DMC3730UVT-7
Discrete Semiconductor Products
MOSFET N/P-CH 25V 0.68A TSOT26
DMC3730UVT-7 Datasheet

Cost Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerZetex Semiconductors (Diodes Inc.)
CategoryDiscrete Semiconductor Products
PackagesTape & Reel (TR)
Standard Quantity3000
DescriptionMosfet Array 25V 680mA (Ta), 460mA (Ta) 700mW Surface Mount TSOT-26
Package / CaseSOT-23-6 Thin, TSOT-23-6
Mounting TypeSurface Mount
ConfigurationN and P-Channel Complementary
Operating Temperature-55°C ~ 175°C (TJ)
TechnologyMOSFET (Metal Oxide)
Power - Max700mW
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C680mA (Ta), 460mA (Ta)
Input Capacitance (Ciss) (Max) @ Vds50pF @ 10V, 63pF @ 10V
Rds On (Max) @ Id, Vgs450mOhm @ 500mA, 4.5V, 1.1Ohm @ 500mA, 4.5V
Gate Charge (Qg) (Max) @ Vgs1.64nC @ 4.5V, 1.1nC @ 4.5V
Vgs(th) (Max) @ Id1.1V @ 250µA
Supplier Device PackageTSOT-26
GradeAutomotive
QualificationAEC-Q101
