• YAGEO XSEMI
• XP6N090N
• Discrete Semiconductor Products

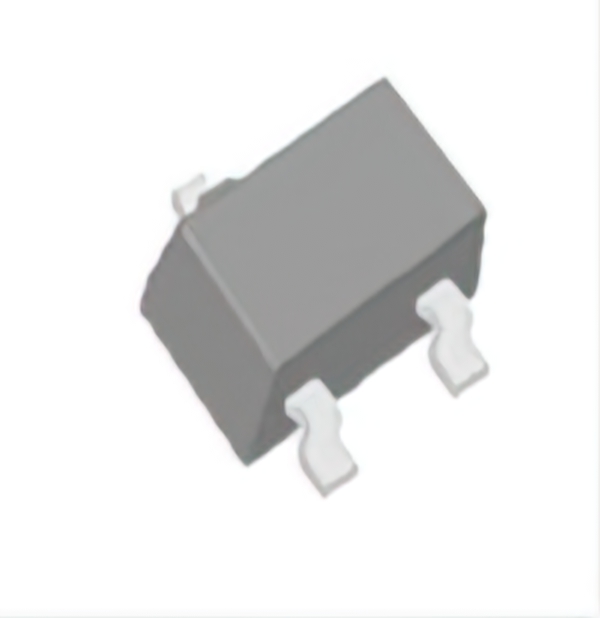

• MOSFET N-CH 60V 2.5A SOT23
•  XP6N090N Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerYAGEO XSEMI
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionN-Channel 60 V 2.5A (Ta) 1.25W (Ta) Surface Mount SOT-23
• Package / CaseTO-236-3, SC-59, SOT-23-3
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C2.5A (Ta)
• Rds On (Max) @ Id, Vgs90mOhm @ 2.5A, 10V
• Power Dissipation (Max)1.25W (Ta)
• Vgs(th) (Max) @ Id3V @ 250µA
• Supplier Device PackageSOT-23
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)60 V
• Gate Charge (Qg) (Max) @ Vgs16 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds720 pF @ 15 V
