  • Vishay Semiconductor - Opto Division

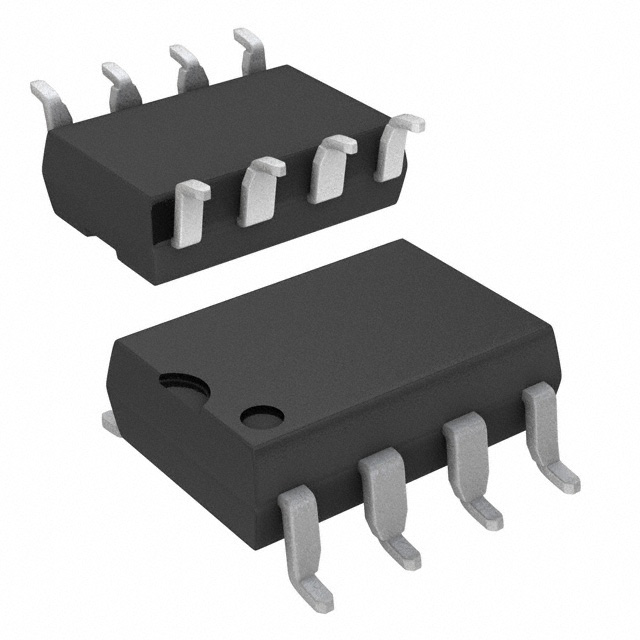

  • 6N138-X007
  • Isolators
  • OPTOISO 5.3KV DARL W/BASE 8SMD
  •  6N138-X007 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerVishay Semiconductor - Opto Division
  • CategoryIsolators
  • PackagesTube
  • Standard Quantity2000
  • DescriptionOptoisolator Darlington with Base Output 5300Vrms 1 Channel 8-SMD
  • Package / Case8-SMD, Gull Wing
  • Output TypeDarlington with Base
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 100°C
  • Voltage - Forward (Vf) (Typ)1.4V
  • Input TypeDC
  • Current - Output / Channel60mA
  • Voltage - Isolation5300Vrms
  • Current Transfer Ratio (Min)300% @ 1.6mA
  • Supplier Device Package8-SMD
  • Voltage - Output (Max)7V
  • Turn On / Turn Off Time (Typ)2µs, 2µs
  • Number of Channels1
  • Current - DC Forward (If) (Max)25 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 6N138-X007 from Vishay Semiconductor - Opto Division only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
