  • Storage & Server IO (Amphenol Communications Solutions)
  • 98401-802-12LF
  • Connectors, Interconnects

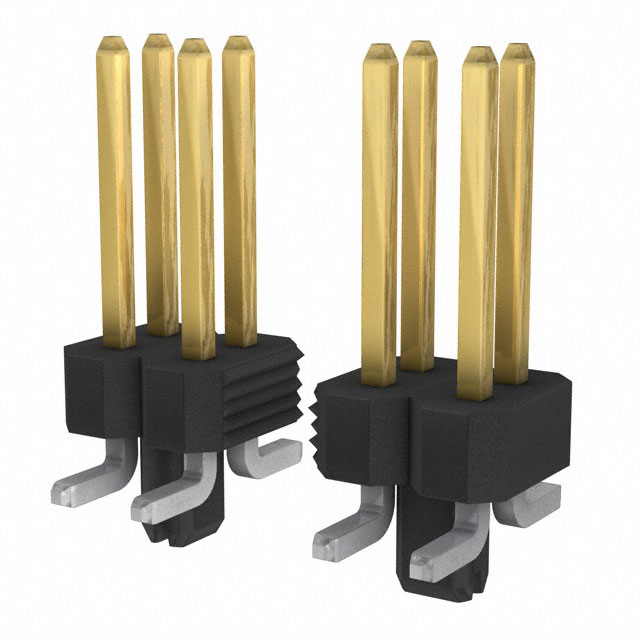

  • CONN HEADER SMD 12POS 2.54MM
  •  98401-802-12LF Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerStorage & Server IO (Amphenol Communications Solutions)
  • CategoryConnectors, Interconnects
  • PackagesBag
  • Standard Quantity500
  • DescriptionConnector Header Surface Mount 12 position 0.100" (2.54mm)
  • FeaturesBoard Guide
  • Connector TypeHeader, Breakaway
  • Current Rating (Amps)3A
  • Mounting TypeSurface Mount
  • Number of Positions12
  • Number of Rows2
  • StyleBoard to Board
  • Operating Temperature-65°C ~ 130°C
  • Contact TypeMale Pin
  • Fastening TypePush-Pull
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-0
  • Contact MaterialPhosphor Bronze
  • Insulation ColorBlack
  • Pitch - Mating0.100" (2.54mm)
  • Contact Finish - MatingGold, GXT™
  • Contact Finish Thickness - Mating15.0µin (0.38µm)
  • Contact Finish - PostTin-Lead
  • Contact Finish Thickness - Post150.0µin (3.81µm)
  • Contact ShapeSquare
  • Insulation Height0.084" (2.14mm)
  • ShroudingUnshrouded
  • Insulation MaterialThermoplastic
  • Row Spacing - Mating0.100" (2.54mm)
  • Contact Length - Mating0.318" (8.08mm)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 98401-802-12LF from Storage & Server IO (Amphenol Communications Solutions) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
