  • Sanyo Semiconductor/onsemi

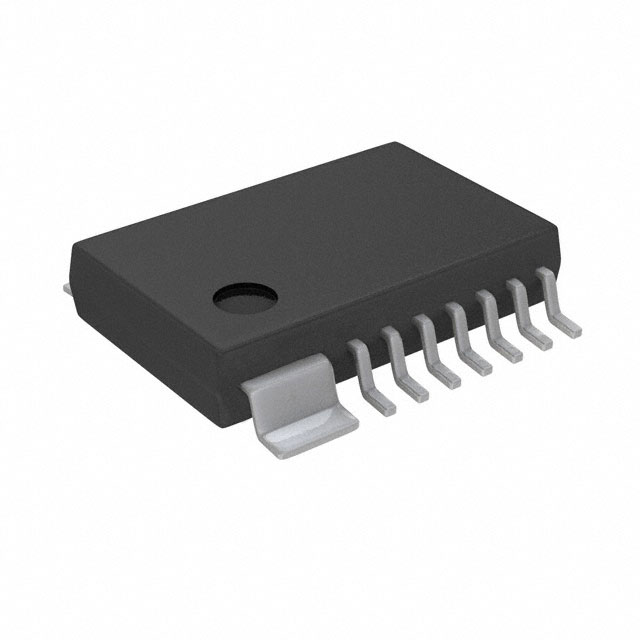

  • LV11961HA-AH
  • Integrated Circuits (ICs)
  • IC HALF BRIDGE DRIVER 1A 14HSSOP
  •  LV11961HA-AH Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryIntegrated Circuits (ICs)
  • PackagesTape & Reel (TR)
  • Standard Quantity2000
  • DescriptionHalf Bridge (2) Driver DC Motors, General Purpose Bi-CMOS 14-HSSOP
  • FeaturesSlew Rate Controlled
  • Package / Case14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs
  • Mounting TypeSurface Mount
  • InterfaceLogic
  • Operating Temperature-40°C ~ 150°C (TJ)
  • Output ConfigurationHalf Bridge (2)
  • Voltage - Supply3.6V ~ 16V
  • ApplicationsDC Motors, General Purpose
  • Current - Output / Channel1A
  • TechnologyBi-CMOS
  • Voltage - Load3.6V ~ 16V
  • Supplier Device Package14-HSSOP
  • Fault ProtectionOver Temperature, Over Voltage, UVLO
  • Load TypeInductive

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new LV11961HA-AH from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
