  • Sanyo Semiconductor/onsemi
  • SCH1436-TL-H
  • Discrete Semiconductor Products

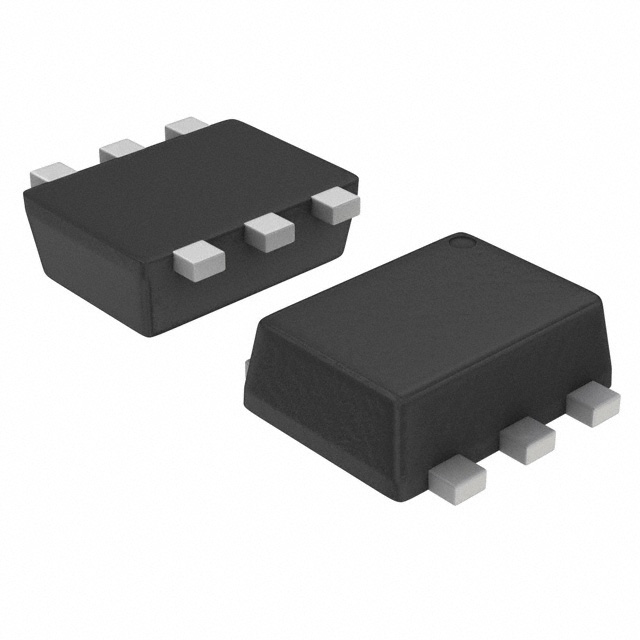

  • MOSFET N-CH 30V 1.8A 6SCH
  •  SCH1436-TL-H Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity5000
  • DescriptionN-Channel 30 V 1.8A (Ta) 800mW (Ta) Surface Mount 6-SCH
  • Package / CaseSOT-563, SOT-666
  • Mounting TypeSurface Mount
  • Operating Temperature150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C1.8A (Ta)
  • Rds On (Max) @ Id, Vgs180mOhm @ 900mA, 10V
  • Power Dissipation (Max)800mW (Ta)
  • Supplier Device Package6-SCH
  • Drive Voltage (Max Rds On, Min Rds On)4V, 10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)30 V
  • Gate Charge (Qg) (Max) @ Vgs2 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds88 pF @ 10 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SCH1436-TL-H from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
