NVLJWD023N04CLTAG Sanyo Semiconductor/onsemi Order From Hard Find Electronics

Electronic Components

At Hard Find Electronics Tech, we source hard-to-find electronic components and manage supply, cost reduction, excess inventory management, and more.

Sanyo Semiconductor/onsemi
NVLJWD023N04CLTAG
Discrete Semiconductor Products
MOSFET 2N-CH 40V 7A/25A 6WDFNW
NVLJWD023N04CLTAG Datasheet

Cost Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerSanyo Semiconductor/onsemi
CategoryDiscrete Semiconductor Products
PackagesTape & Reel (TR)
Standard Quantity3000

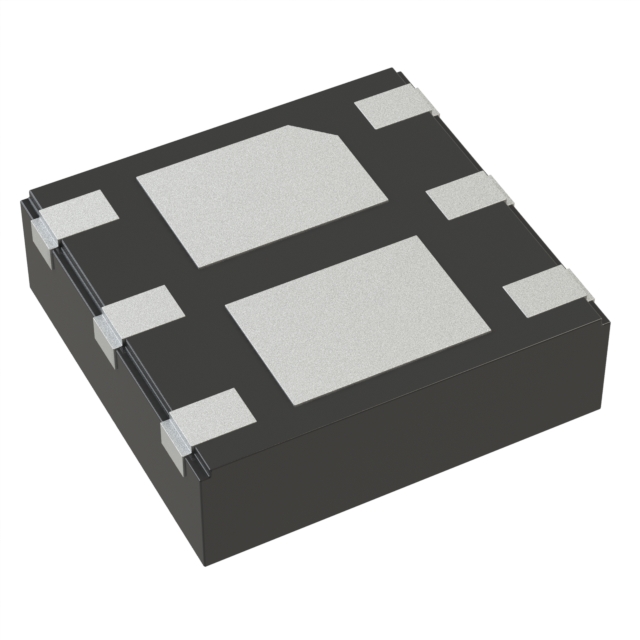

DescriptionMosfet Array 40V 7A (Ta), 25A (Tc) 2W (Ta), 24W (Tc) Surface Mount, Wettable Flank 6-WDFNW (2.2x2.3)
Package / Case6-WDFN Exposed Pad
Mounting TypeSurface Mount, Wettable Flank
Configuration2 N-Channel (Dual)
Operating Temperature-55°C ~ 175°C (TJ)
TechnologyMOSFET (Metal Oxide)
Power - Max2W (Ta), 24W (Tc)
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C7A (Ta), 25A (Tc)
Input Capacitance (Ciss) (Max) @ Vds440pF @ 25V
Rds On (Max) @ Id, Vgs23mOhm @ 5A, 10V
Gate Charge (Qg) (Max) @ Vgs9nC @ 10V
Vgs(th) (Max) @ Id2V @ 13µA
Supplier Device Package6-WDFNW (2.2x2.3)
GradeAutomotive
QualificationAEC-Q101

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NVLJWD023N04CLTAG from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide

RFQ

Source at least two reliable suppliers
QUOTE

Information checking available/price/condition
QC PROCESS

3-Step Quality Control and Professional Third-Party Test
SHIPMENT

FedEx, DHL, UPS, TNT

In Stock: 3,000

Please send an RFQ for instant price and inventory.

Fast Shipping

QUANTITY

Multiples of 1
