Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • IR (Infineon Technologies)
  • TLE75242ESHXUMA1
  • Integrated Circuits (ICs)
  • IC PWR DRVR N-CHAN 1:8 TSDSO-24
  •  TLE75242ESHXUMA1 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerIR (Infineon Technologies)
  • CategoryIntegrated Circuits (ICs)
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionPower Switch/Driver 1:8 N-Channel 330mA PG-TSDSO-24-21
  • FeaturesSlew Rate Controlled

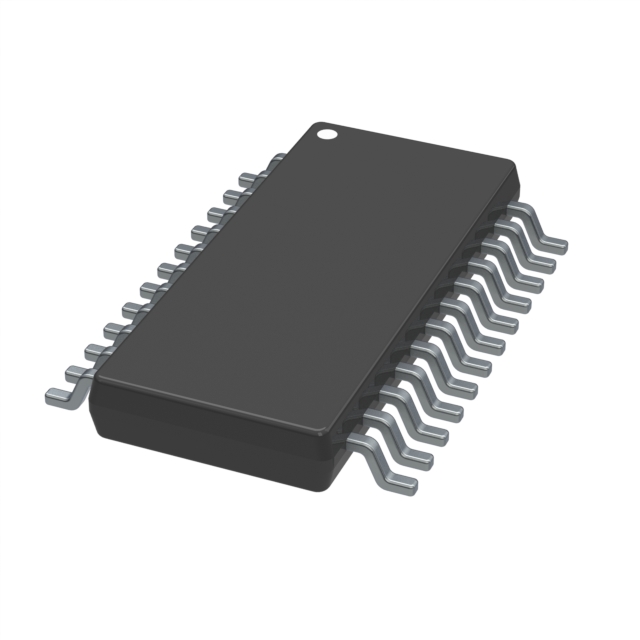

  • Package / Case24-TSSOP (0.154", 3.90mm Width) Exposed Pad
  • Output TypeN-Channel
  • Mounting TypeSurface Mount
  • Number of Outputs8
  • InterfaceSPI
  • Switch TypeRelay, Solenoid Driver
  • Operating Temperature-40°C ~ 150°C (TJ)
  • Output ConfigurationHigh Side or Low Side
  • Rds On (Typ)1Ohm
  • Voltage - Load3V ~ 28V
  • Voltage - Supply (Vcc/Vdd)3V ~ 5.5V
  • Current - Output (Max)330mA
  • Ratio - Input:Output1:8
  • Supplier Device PackagePG-TSDSO-24-21
  • Fault ProtectionOpen Load Detect, Over Temperature, Over Voltage
  • GradeAutomotive
  • QualificationAEC-Q100

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new TLE75242ESHXUMA1 from IR (Infineon Technologies) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,957
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
