Product Specifications
  • AttributesAttribute Value
  • ManufacturerBroadcom
  • CategoryIsolators
  • PackagesTube
  • Standard Quantity50
  • DescriptionLogic Output Optoisolator 10MBd Open Collector, Schottky Clamped 5000Vrms 2 Channel 15kV/µs CMTI 8-DIP

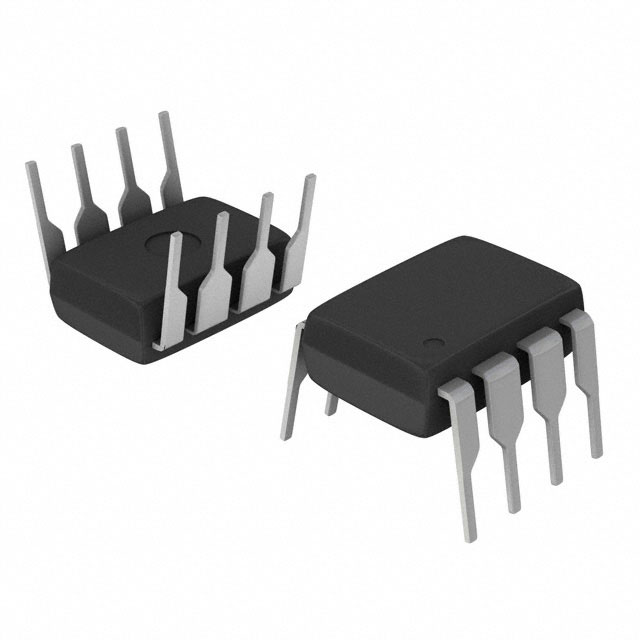

  • Package / Case8-DIP (0.300", 7.62mm)
  • Output TypeOpen Collector, Schottky Clamped
  • Mounting TypeThrough Hole
  • Operating Temperature-40°C ~ 85°C
  • Voltage - Supply4.5V ~ 5.5V
  • Voltage - Forward (Vf) (Typ)1.3V
  • Data Rate10MBd
  • Input TypeDC
  • Voltage - Isolation5000Vrms
  • Current - DC Forward (If) (Max)10mA
  • Inputs - Side 1/Side 22/0
  • Supplier Device Package8-DIP
  • Rise / Fall Time (Typ)42ns, 12ns
  • Common Mode Transient Immunity (Min)15kV/µs
  • Propagation Delay tpLH / tpHL (Max)100ns, 100ns
  • Number of Channels2
  • Current - Output / Channel50 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HCPL-263N#020 from Broadcom only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1

MORECustomer Reviews
  • Ch***as
    I'm very delighted to do business with you ! everything is perfect; the chips the packaging ... Thank you !
  • Ge***rd
    Thank you Vicky for great service.
  • Pe***er
    Crystal,got parts today.QC check and everything great. Thanks for efforts.
  • Uw***er
    If we need more parts, we will be happy to contact you immediately.
  • Ch***rl
    Thank you for your prompt efficient service.

VIEW ALL

Hard-to-find Electronic Components Distributor
You May Also Be Interested in

Broadcom

HCPL-263N#020

In Stock: 0 | For reference only.
